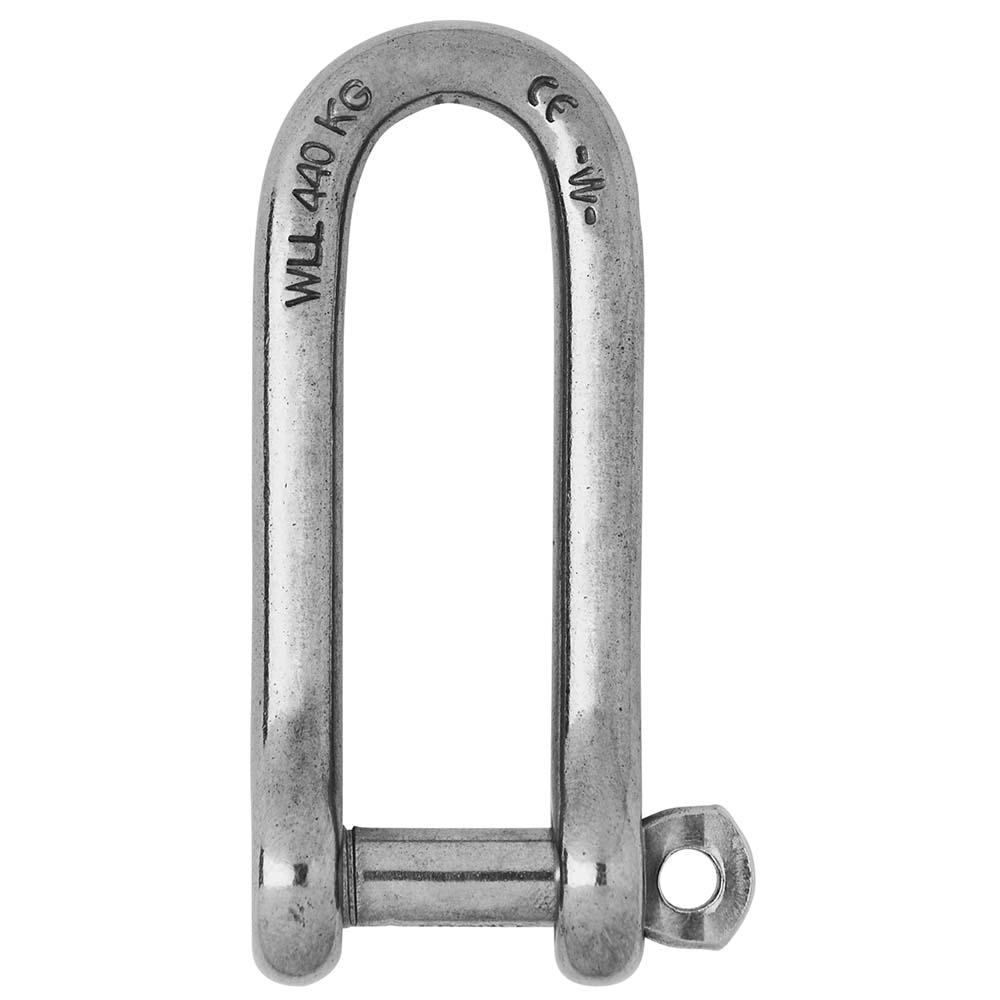

Captive Pin Long D Shackle - Diameter 6mm - 1/4"

Features:


  • Captive pin long "D" shackle forged in grade 316L stainless steel

  • The pin is connected to the body at all times even when opened

  • The pin is locked into one of the indentations

  • No risks of loosening due to vibrations

  • Outstanding working and breaking loads

Applications:


  • Standard applications of shackle requiring more length

  • Attachment applications: blocks, head...

Specifications:


  • Materials 316 stainless steel grade

  • Working load (lb) 1490

  • WLL (lb) 970

  • Breaking load (lb) 4850

  • Weight (lb) 0.088

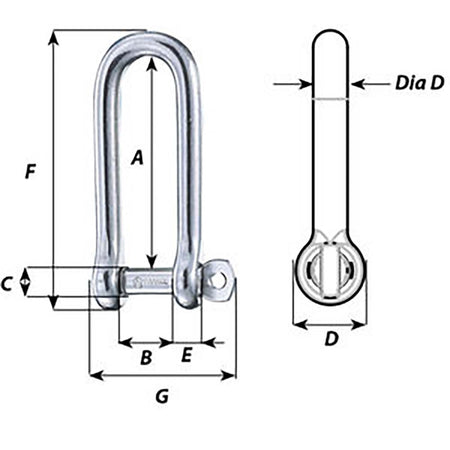

Dimensions (see 2nd image):


  • A (inch) 1-13/16"

  • B (inch) 15/32"

  • C (inch) 9/32"

  • D (inch) 35/64"

  • D diameter (inch) 15/64"

  • E (inch) 15/64"

  • F (inch) 2-31/64"

  • G (inch) 1-17/64"
Truck Freight: No
Oversized: No
  • Type Sailing
  • SKU 93117
  • Barcode 3587790014136
