Wichard Self-Locking D Shackle - Diameter 10mm - 13/32"
Wichard Self-Locking D Shackle - Diameter 10mm - 13/32"
Wichard Self-Locking D Shackle - Diameter 10mm - 13/32"
Wichard Self-Locking D Shackle - Diameter 10mm - 13/32"
Wichard Marine

Wichard Self-Locking D Shackle - Diameter 10mm - 13/32"

SKU: 93094
(0)
Only 5 left
Low inventory - Hurry up!
$46.99 USD

🎁 Spend $99.99 on Get Tight Gear → Get a FREE Offshore Bucket!

Applies only to Get Tight Gear products. Limit 1 per order. Auto-applied at checkout. ⏳ Limited Time. 🔥 Limited Quantities. Don’t Miss Out!

Shop Get Tight Gear See the Bucket

Love it? Share it with your crew!

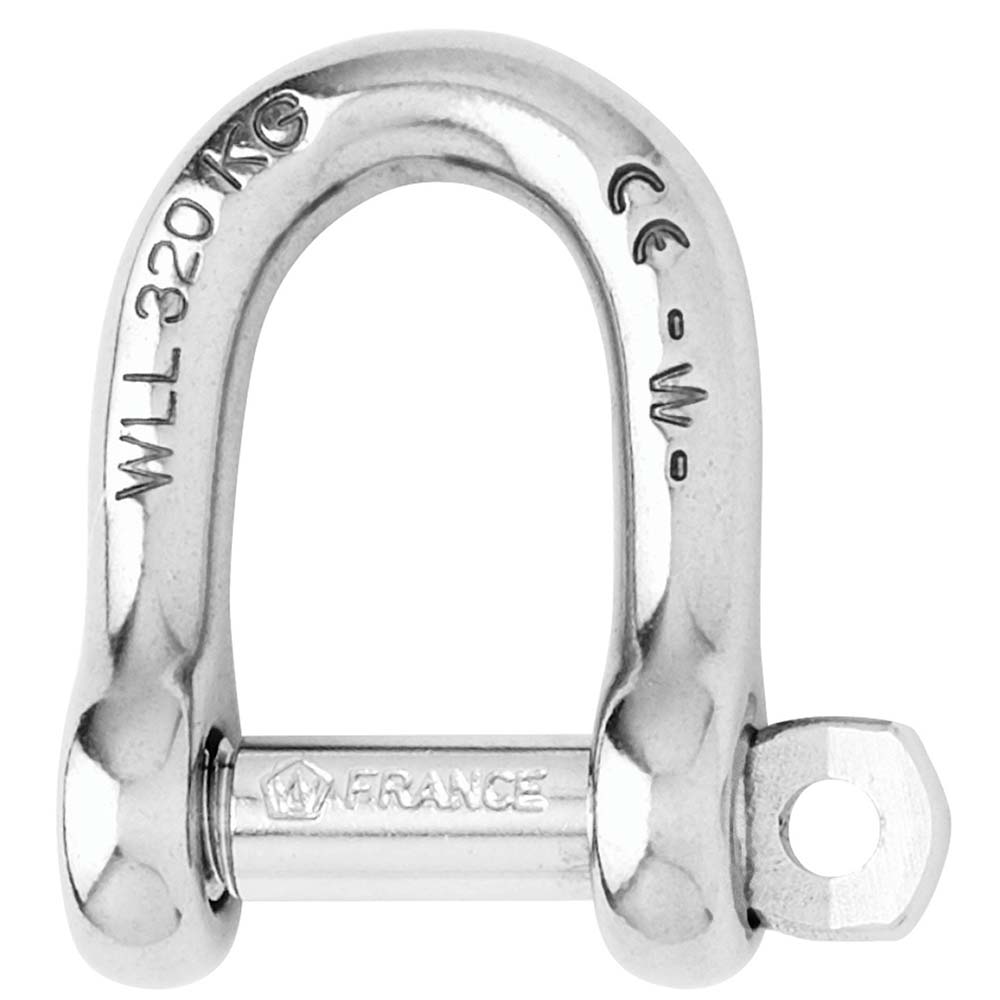

Self-Locking D Shackle - Diameter 10mm - 13/32"

Features:


  • Self-locking D shackle forged in grade 316L stainless steel

  • The pin is locked into one of the indentations

  • No risks of loosening due to vibrations

  • Outstanding working and breaking loads

  • WLL: only for industrial applications (lifting i.e)

  • CE marking and batch number

Applications:


  • Standard applications of the shackle

  • Attachment applications: blocks, head

Specifications:


  • Materials 316 stainless steel grade

  • Working load (lb) 3350

  • WLL (lb) 1890

  • Breaking load (lb) 9470

  • Weight (lb) 0.216

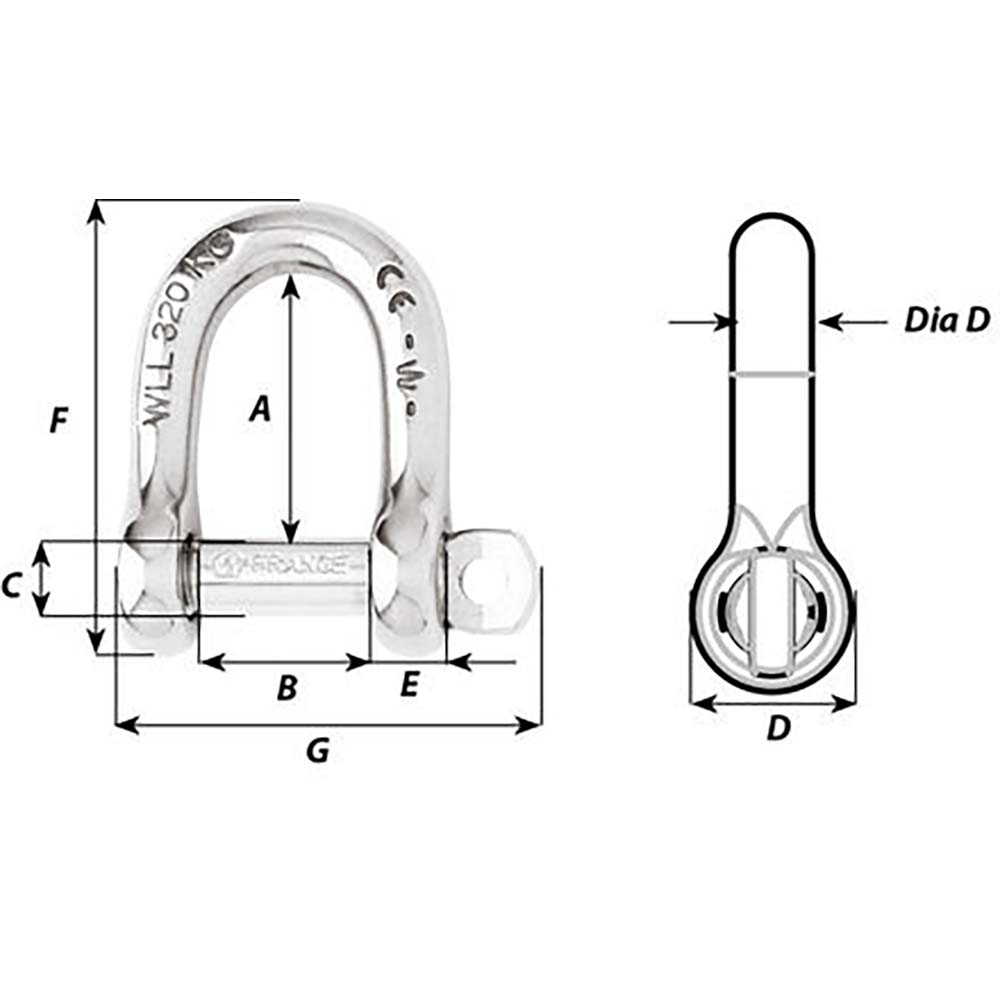

Dimensions (see 2nd image):


  • A (inch) 1-19/64"

  • B (inch) 25/32"

  • C (inch) 25/64"

  • D (inch) 3/4"

  • D diameter (inch) 25/64"

  • E (inch) 23/64"

  • F (inch) 2-1/4"

  • G (inch) 2-3/64"
Truck Freight: No
Oversized: No
  • Type Sailing
  • SKU 93094
  • Barcode 768536012057
