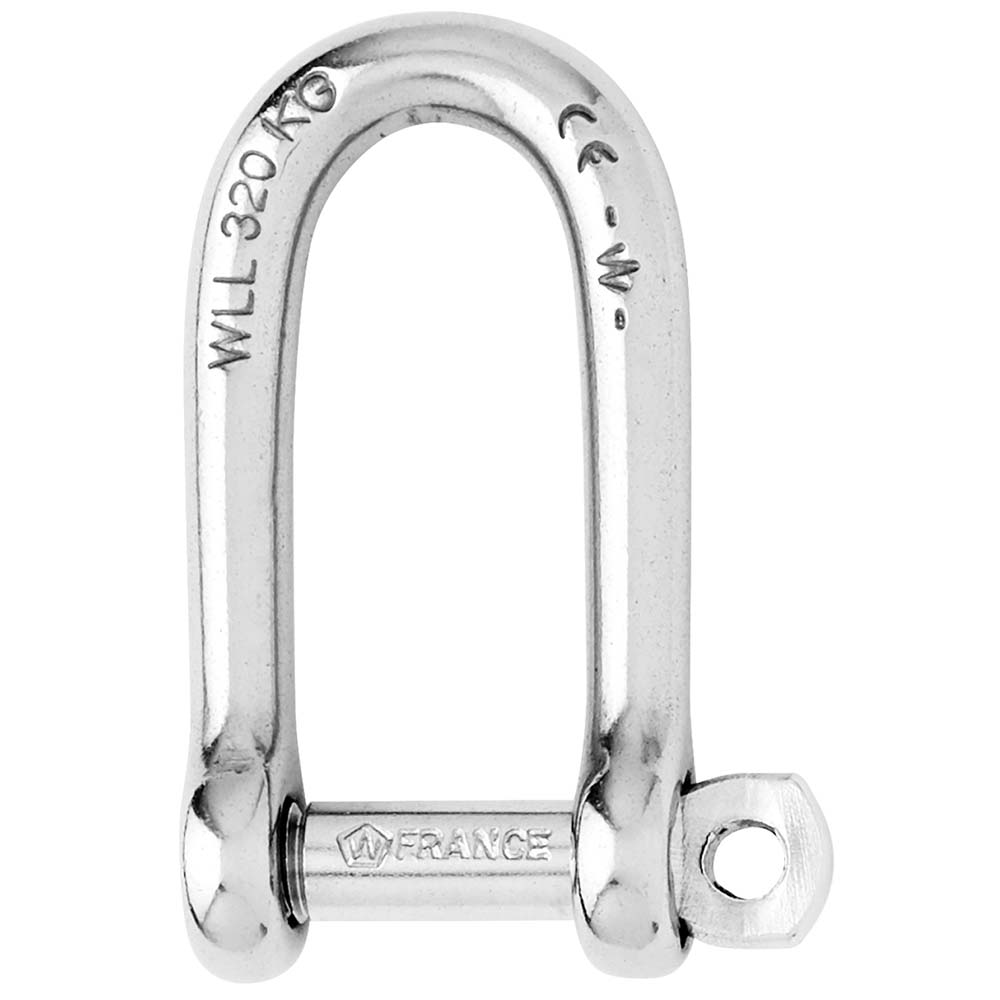

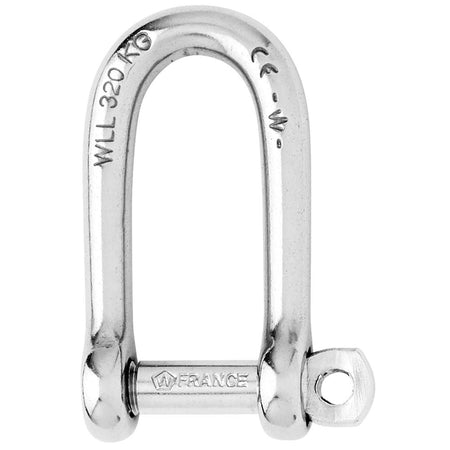

Self-Locking Long D Shackle - Diameter 4mm - 5/32"

Features:


  • Self-locking long shackle forged in grade 316L stainless steel

  • The pin is locked into one of the indentations

  • No risks of loosening due to vibrations

  • Outstanding working and breaking loads

  • WLL: only for industrial applications

  • CE Marking and batch number

Applications:


  • Standard applications of shackle requiring more length

  • Attachment applications: blocks, head

Specifications:


  • Materials 316 stainless steel grade

  • Working load (lb) 700

  • WLL (lb) 300

  • Breaking load (lb) 1540

  • Weight (lb) 0.018

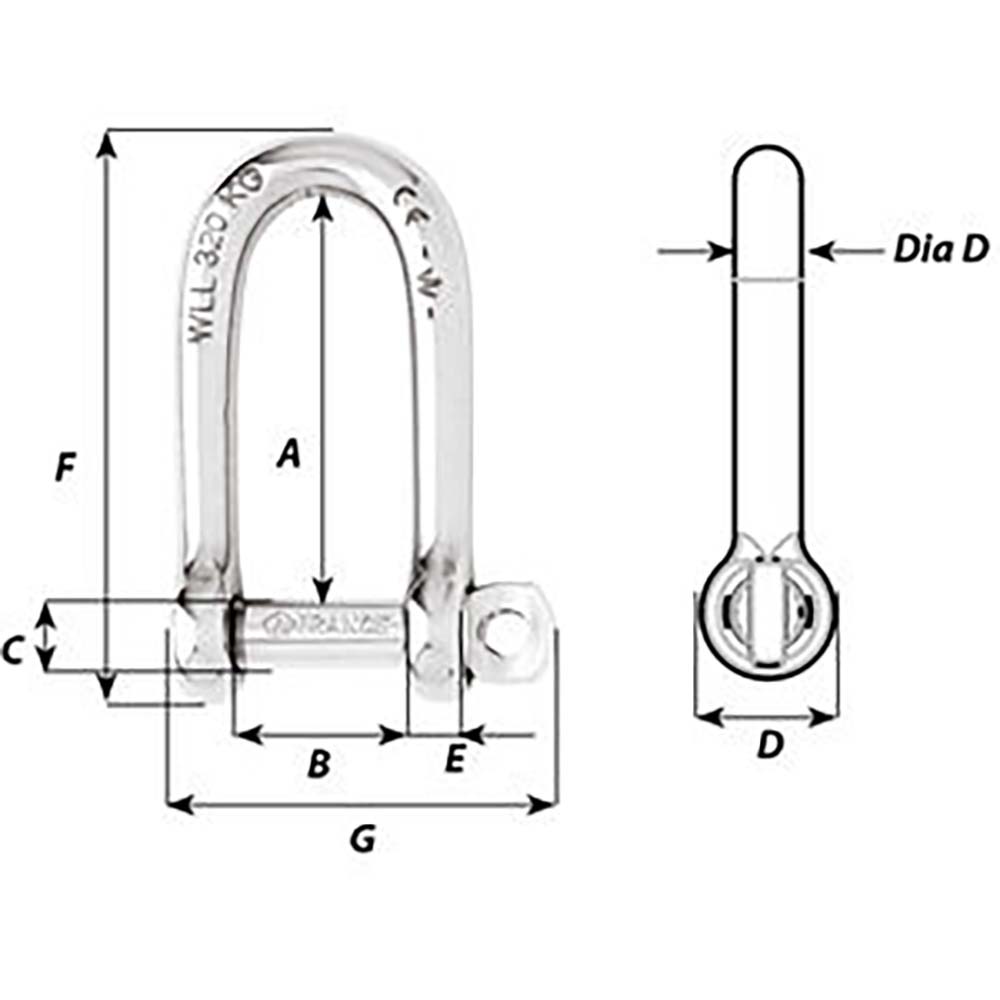

Dimensions (see 2nd image):


  • A (inch) 55/64"

  • B (inch) 5/16"

  • C (inch) 5/32"

  • D (inch) 5/16"

  • D diameter (inch) 5/32"

  • E (inch) 5/32"

  • F (inch) 1-17/64"

  • G (inch) 53/64"
Truck Freight: No
Oversized: No
  • Type Sailing
  • SKU 93095
  • Barcode 768536012118
