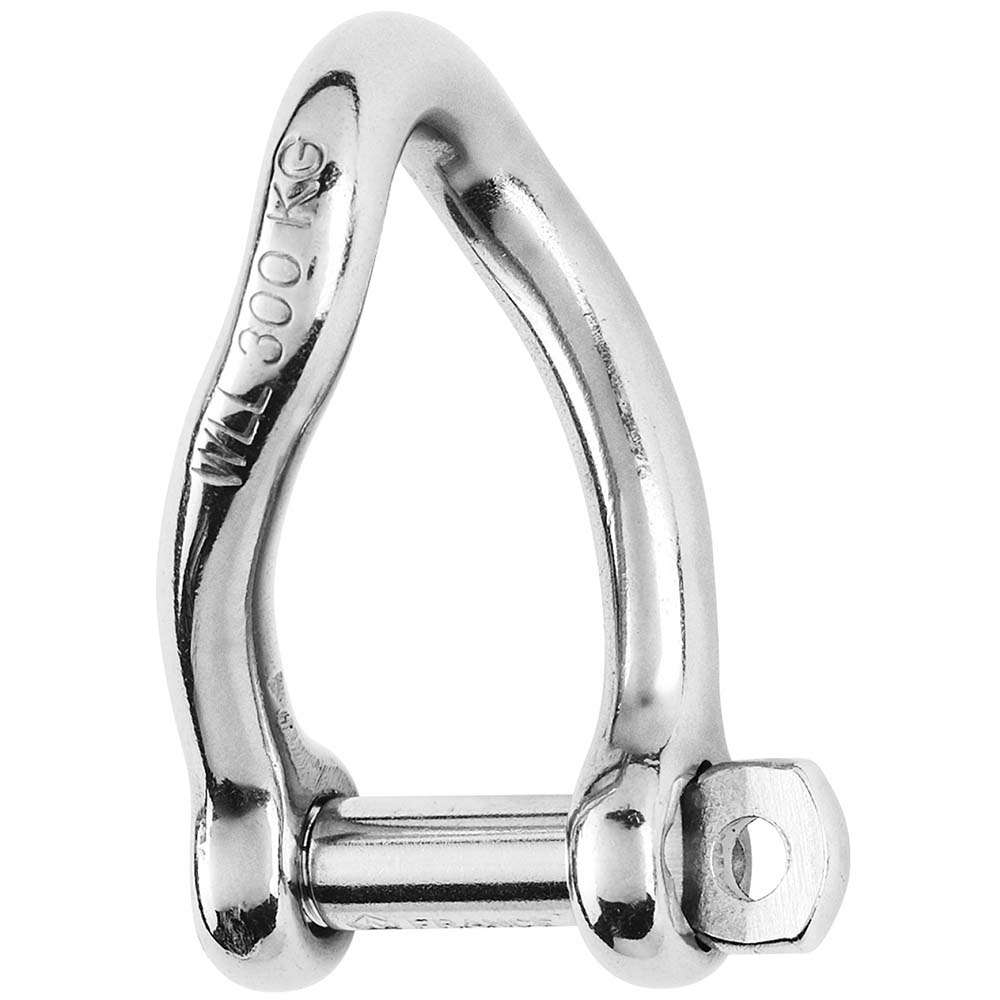

Self-Locking Twisted Shackle - Diameter 6mm - 1/4"

Features:


  • Self-locking twisted shackle forged in grade 316L stainless steel

  • The pin is locked into one of the indentations

  • No risks of loosening due to vibrations

  • Outstanding working and breaking loads

Applications:


  • Perfect for application where a 90 angle twist setup is required

  • Often used to attach an unarticulated part (block on a rail) or on purchases

Specifications:


  • Materials 316 stainless steel grade

  • Working load (lb) 1320

  • Breaking load (lb) 3300

  • Weight (lb) 0.06

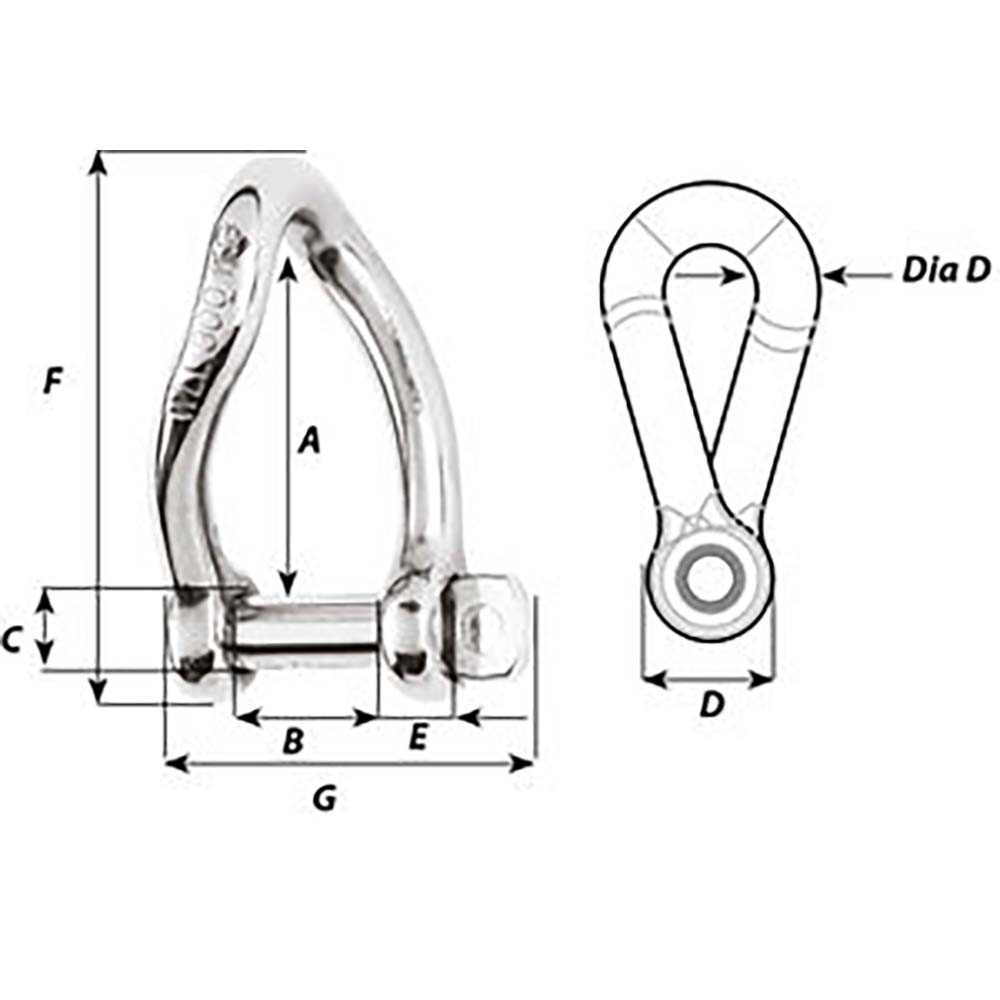

Dimensions (see 2nd page):


  • A (inch) 1-3/16"

  • B (inch) 15/32"

  • C (inch) 15/64"

  • D (inch) 15/32"

  • D diameter (inch) 15/64"

  • E (inch) 13/64"

  • F (inch) 1-49/64"
Truck Freight: No
Oversized: No
  • Type Sailing
  • SKU 93100
  • Barcode 768536012231
